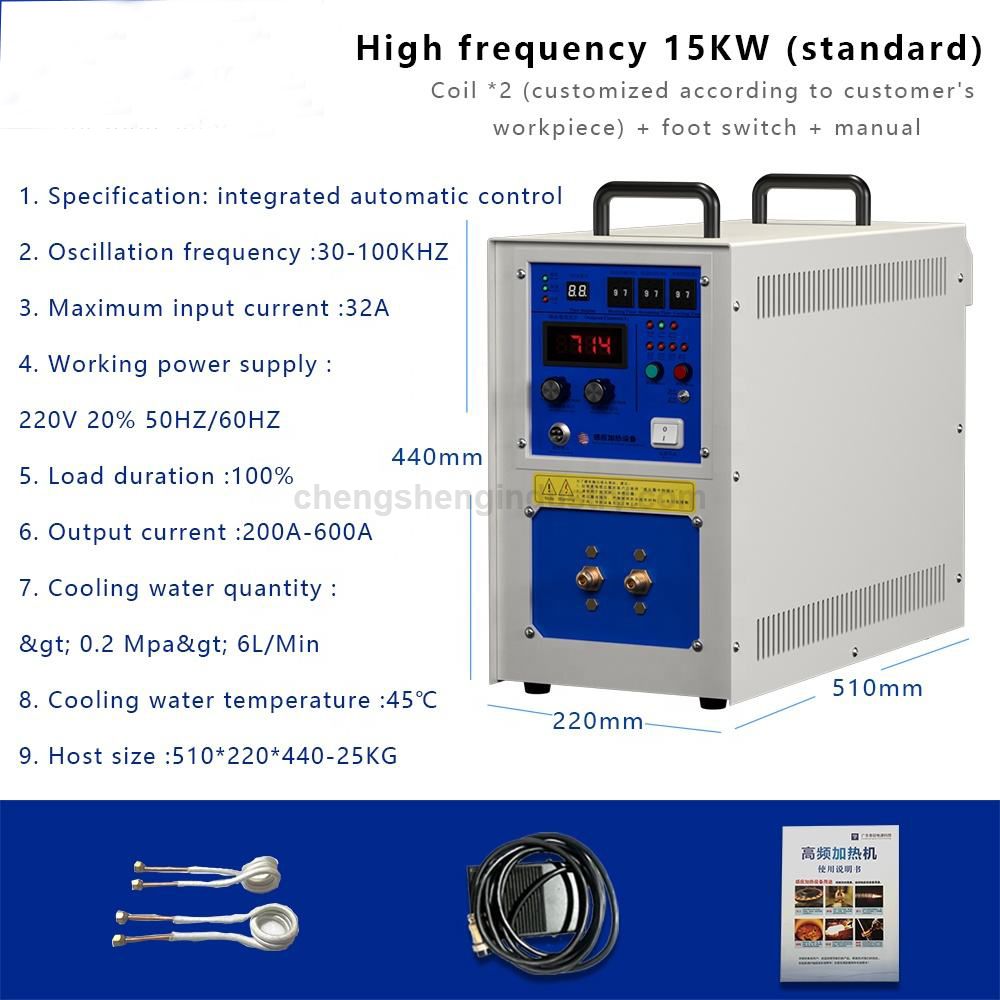

HCX High Frequency Induction Heating Machine 15KW
The induction heating equipment outputs strong alternating frequency current and generates strong alternating magnetic field through the induction coil. Under the action of magnetic field, vortex current is formed on the surface of the heated workpiece, thus rapidly heating the workpiece.
Induction Heating Advantage:
A. Fast Heating: The Fastest Heating Speed Is Less Than 1 Second, And The Heating Speed Can Be Adjusted And Controlled. B. Wide application: can heat all kinds of metal workpiece. (According to the shape of the workpiece to make induction coil)
C. Energy saving: the thermal efficiency is more than 95%, so it is energy-saving compared with other heating methods (such as: gas, oxygen, acetylene, coking coal, electric furnace, electron tube high frequency, etc.).
D. Good effect: the workpiece surface heating evenly, heating up quickly, reduce the workpiece surface oxidation layer and workpiece deformation degree. E. High efficiency: the equipment automatically sets the function, the operation can be completed by one person, thus reducing the process, improve efficiency.
F. Small footprint: the equipment is small in size and light in weight, occupying less than half a cubic space, which is easy to handle and move.
G. Easy to operate: CNC design, the whole machine without debugging, installation, operation is very simple, 5 minutes to learn.
H. Good environmental protection: no noise, pollution and open fire, easy to meet the requirements of environmental protection and fire protection.
| Model | HCX-15kw |
| Maximum input power | 7KW |
| Output oscillation frequency | 30-100khz |
| Output voltage | Single phase 220V / 50 or 60 HZ |
| Load duration | 80% |
| Heating power supply | 200-600A |
| Cooling water requirements | ＞0.2MPA ≥6/MIN |
| Weight | 23kg |
| Measurement | 42*20*36 cm |
