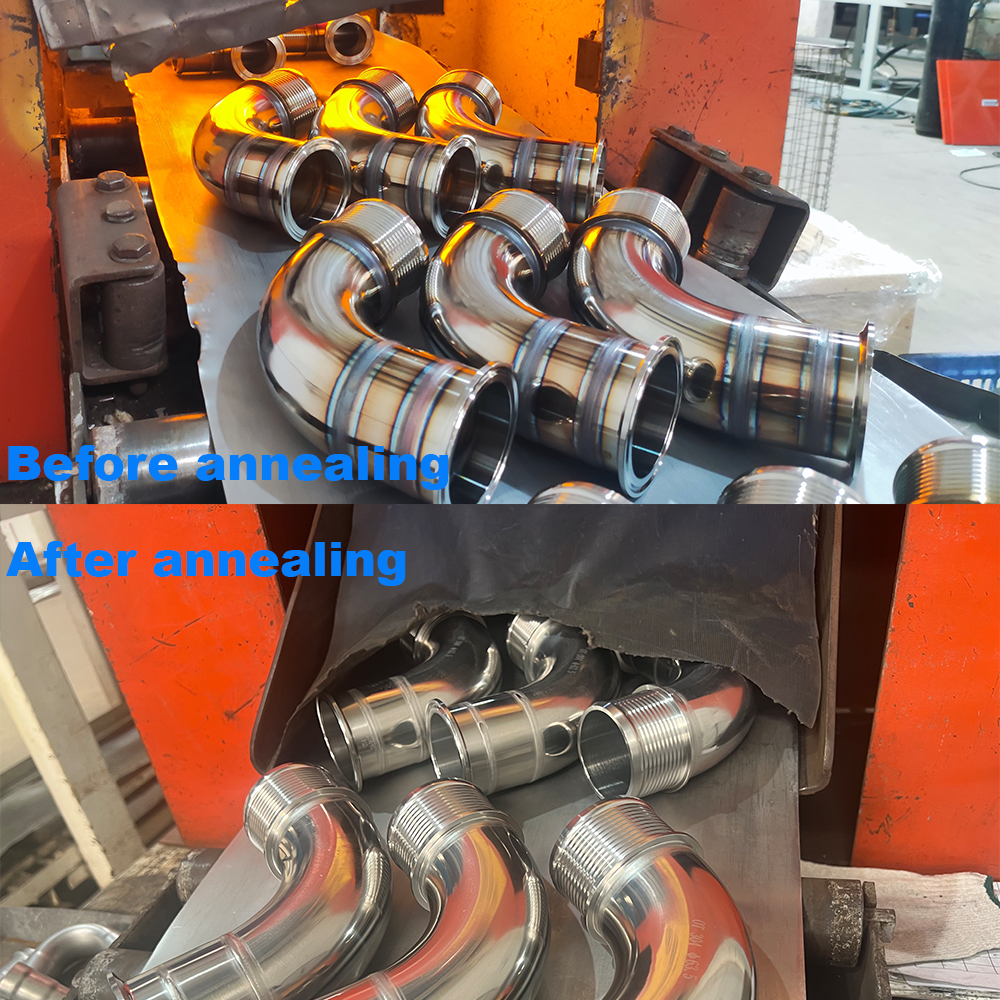

Comparative Analysis of Annealed vs. Non-Annealed Stainless Steel Hose Fittings
May. 09, 2025
Significant differences exist in mechanical properties, machinability, corrosion resistance, microstructure, and surface quality before and after annealing.
I. Mechanical Property Comparison
Before Annealing
High Hardness: Work hardening may elevate surface hardness beyond 200 HB (Brinell), leading to brittle cracking.
Limited Ductility: Dislocation pile-ups from cold working reduce elongation to 10–15%, causing fractures during bending/flaring.
After Annealing
Hardness Reduction: Typical annealed hardness drops to 150–180 HB, facilitating subsequent stamping/flaring processes.
Ductility Enhancement: Elongation recovers to 25–35%, meeting the 90° bend-without-cracking requirement.
II. Machinability Comparison
Before Annealing
Poor Formability: Cold-worked hardening limits flaring rates to ≤30%, resulting in "orange peel" surface defects.
Rapid Tool Wear: High hardness shortens stamping die life by >50%, necessitating frequent tool replacements.
After Annealing
Formability Optimization: Flaring rates increase to 50–60%, complying with ANSI B36.19 soft-state tube standards.
Elevated Cutting Efficiency: Cutting forces reduce by 30%, extending tool life by 2–3x and achieving Ra 0.8 μm surface finishes.
III. Corrosion Resistance Comparison
Before Annealing
Intergranular Corrosion (IGC) Risk: Cold working induces chromium-depleted zones, accelerating corrosion rates to 0.5 mm/a in 6% FeCl₃ solutions (304 SS).
Stress Corrosion Cracking (SCC): Residual stresses >30% of yield strength trigger SCC in Cl⁻ environments.
After Annealing
Corrosion Resistance Improvement: Annealing eliminates chromium-depleted zones, reducing corrosion rates to <0.1 mm/a in identical solutions.
Residual Stress Elimination: Stresses reduce to ≤50 MPa, meeting ASTM A262 IGC testing criteria.
IV. Microstructural Comparison
Before Annealing
Deformed Microstructure: Austenite grains elongate into fibrous structures with 15–20% twin density, causing anisotropy.
High Dislocation Density: Cold working elevates dislocation density to ~10¹²/cm², inducing work hardening.
After Annealing
Recrystallized Grain Structure: Austenite grains revert to equiaxed morphology with 50–80 μm average grain size (ASTM E112 compliant).
Dislocation Density Reduction: Annealing lowers dislocation density to ~10⁸/cm², eliminating hardening effects.
V. Surface Quality Comparison
Before Annealing
Surface Oxidation: Residual oil contaminants form 0.5–1 μm oxide films at elevated temperatures, requiring pickling.
Scratch Defects: Machining generates 10–20 μm-deep microcracks, compromising sealing integrity.
After Annealing
Bright Annealed Finish: Hydrogen-shielded annealing produces mirror-grade Ra 0.2 μm surfaces suitable for food-grade applications.
Defect Remediation: Annealing removes >90% of machining scratches, with sealing surfaces meeting ISO 15848 roughness standards.
VI. Typical Application Scenarios
Non-Annealed Fittings: Suitable for high-pressure static seals (e.g., steam pipelines) but require bending radii ≥3× pipe diameter.
Annealed Fittings: Widely used in dynamic seals requiring frequent disassembly (medical devices, food machinery), with bending fatigue life increased >5×.
Conclusion
Annealing significantly improves machinability, corrosion resistance, and service life by modulating microstructure and stress states. Annealed fittings offer irreplaceable advantages in dynamic sealing and high-precision forming applications. Process parameters (e.g., 850°C × 1h + air cooling) should be tailored to specific operating conditions to balance performance and cost.
